Written by an industry professional who needed elevations faster than CAD and cleaner than a sketch would allow.
Enter the opening, get a dimensioned sheet. Doors, frames and jamb profiles, drawn in the browser, printed or exported in seconds.
From the opening to a printed sheet in three steps.
Pick the door, frame and wall type, then type the sizes. Decimals are fine; the sheet prints fractions.
Dimensions, labels and the title block update as you change the opening.
Print to PDF from the browser. Pro adds project files and SVG export for CAD and layout.

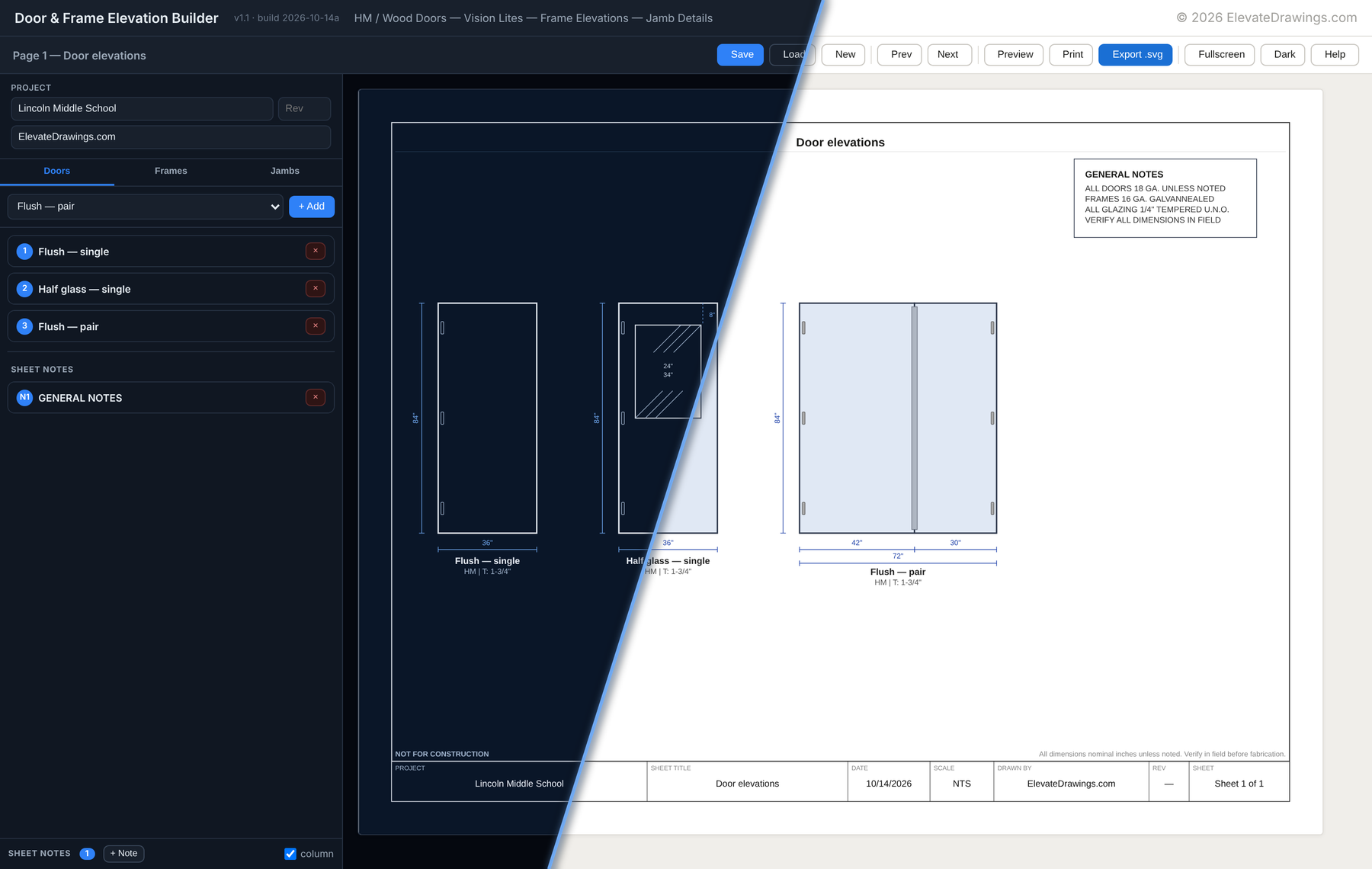

Each page holds its own elevations and prints as its own sheet. Everything below was drawn by the app, not mocked up.
Singles and pairs with independent leaf widths. Lites and louvers size themselves to each leaf. Hinges follow the height; levers and astragals are yours to show or leave off.
Single, pair and sidelite frames in drywall or masonry, with transoms, borrowed lites, and a centre mullion that offsets itself when the openings are unequal.
Eight sections — double rabbet, single rabbet, cased opening and double egress, each in masonry and drywall, with welded and knock-down heads.
Work in dark mode if you like — print and export are always white paper and dark lines, on a titled sheet at 11" × 8½" landscape.
or $18 a month · annual is two months free · about 72¢ per working day
All dimensions nominal inches unless noted. Verify in field before fabrication.
